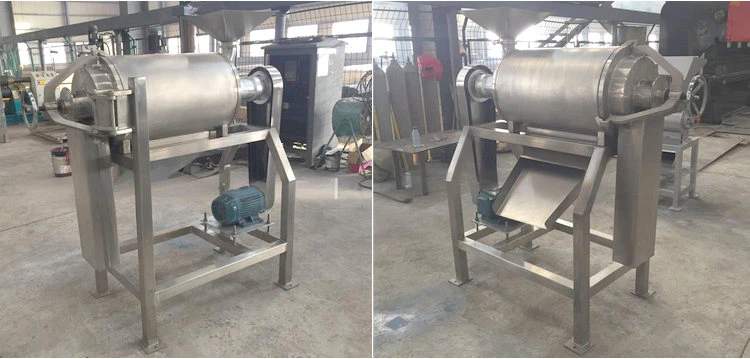

Fruit Pulp Making Machine

The fruit pulp making machine manufactured by our company is specially designed for processing juice and jam. The machine has a high degree of automation. You only need to put the raw materials into the machine's inlet, and the fruit pulping machine will automatically beat the fruit into pulp.

The commercial fruit pulp making machine is suitable for pulping and separating tomatoes, kiwis, strawberries, peaches, bayberries, avocados, loquats, and pre-cooked and softened hawthorns and red dates.

• The motor of this fruit pulp making machine is driven by a V-belt, which makes the scraper installed on the spline shaft rotate at high speed. The crushed fruit enters through the feed port, and the pulp disk evenly distributes the material between the scraper and the screen. Due to the rotation of the scraper and the existence of the lead angle, the material moves along the cylinder to the outlet end.
• During the movement between the scraper and the screen, the material is crushed by the centrifugal force. The juice and pulp pass through the screen holes and come out from the discharge port, and the skin and seeds are discharged from the slag outlet, thereby realizing automatic separation of fruit pulp and slag.

1. An internal filter screen automatically separates the pulp after filtering, resulting in a high pulp yield.
2. A pure copper motor with a protective cover ensures stable operation.
3. The trapezoidal discharge port ensures smooth discharge and prevents splashing.
4. All parts of the fruit pulp making machine that come into contact with the product are made of high-quality stainless steel, meeting food hygiene standards.
5. This automatic fruit pulper can be used alone for pulping or combined with other fruit processing equipment such as a fruit sorter, a fruit washer, and a fruit cutter to create an fully automatic fruit jam production line.
